Installing a Site Plan for a Shed might seem like a small backyard improvement, but in most cities across the United States, it still requires a building permit — and that permit cannot be approved without a properly prepared site plan. A clear and accurate Site Plan for a Shed is essential because it shows the exact placement of the structure on your property, its distance from boundaries, and how it complies with local zoning and setback regulations.

The good thing is that a shed site plan is usually one of the simplest drawings to prepare compared to larger residential or commercial projects. In many cases, a professional Site Plan for a Shed can be completed and delivered within 24 hours, with prices starting around $79 depending on the service provider.

Do You Need a Permit Site Plan for a Shed?

Permit requirements for a Site Plan for a Shed depend on your local city rules, zoning laws, and property type. While regulations vary, the following general guidelines apply in most areas:

• Small sheds (under 100–200 sq. ft.)
  Many cities do not require a building permit for small sheds, but a basic Site Plan for a Shed may still be needed for HOA approval or property records.
• Medium to large sheds (over 200 sq. ft.)
  In most jurisdictions, sheds above this size require a full permit, and a detailed Site Plan for a Shed becomes mandatory. It must show property lines, setbacks, and exact placement of the structure.
• Sheds with utilities (electricity or plumbing)
  Any shed with electrical wiring, lighting, or plumbing requires a permit regardless of size. In such cases, the Site Plan for a Shed must also include utility layouts and safety compliance details.
• HOA-controlled communities
  Even if the city does not require a permit, homeowners associations may still request a Site Plan for a Shed to ensure the structure follows design and aesthetic guidelines.
• Local rule variations
  Every city has different regulations, so it is important to confirm requirements with your local building department before starting construction.

A properly prepared Site Plan for a Shed not only helps you avoid permit delays but also ensures your project is compliant, approved faster, and free from costly redesigns or rejections.

What the Site Plan Must Show for a Shed Permit

When submitting a Site Plan for a Shed, your local building department typically requires a clear and scaled drawing that shows both existing conditions and the proposed construction. A properly prepared Site Plan for a Shed helps reviewers quickly understand your project and ensures it meets zoning and safety regulations.

Your Site Plan for a Shed should include the following key elements:

• Property boundaries and exact lot dimensions
• Existing house and all other structures on the property
• Proposed shed location with accurate dimensions
• Setback distances from all property lines
• Distance between the shed and the main house
• North arrow for orientation
• Drawing scale for accuracy
• Property address and parcel number

Each of these elements helps confirm that the Site Plan for a Shed is compliant with local zoning rules and easy for the permit office to review.

Common Setback Requirements for Sheds

Setback rules are one of the most important parts of a Site Plan for a Shed. These requirements ensure that structures are safely placed within property limits and do not interfere with neighboring properties.

Typical setback requirements include:

• Rear setback: usually 3–10 feet (varies by city)
• Side setback: commonly 3–5 feet depending on zoning rules
• Distance from house: often 10+ feet for fire safety compliance
• HOA rules: may be stricter than city regulations

Because setback rules vary widely, your Site Plan for a Shed must always reflect your local jurisdiction’s specific requirements.

Can I Put a Shed in the Front Yard?

In most residential zoning areas, placing a shed in the front yard is not allowed. A Site Plan for a Shed must clearly show that the structure is located in an approved area, typically the rear yard.

• Front yards: usually prohibited for accessory structures
• Side yards: sometimes allowed with strict setback conditions
• Rear yards: most commonly approved location

Always verify your zoning ordinance before finalizing your Site Plan for a Shed, as improper placement is a common reason for permit rejection.

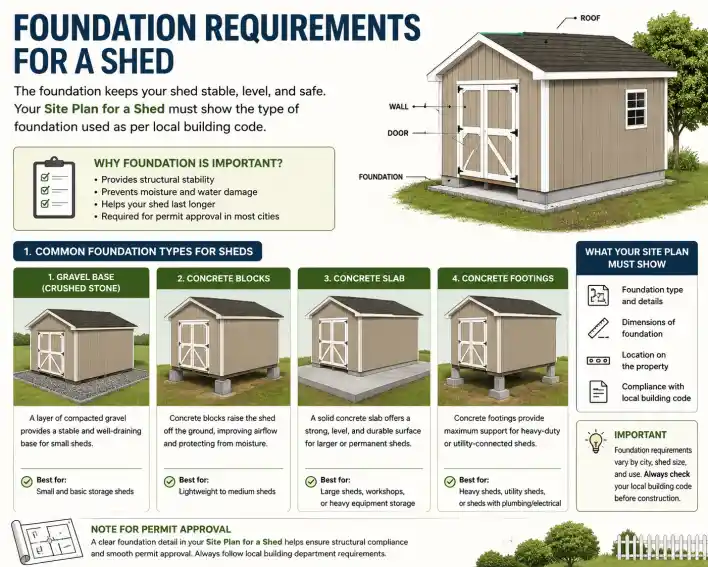

Foundation Requirements for a Shed

Your Site Plan for a Shed may also need to clearly indicate the type of foundation being used, as this is an important part of the permit review process in most cities. The foundation plays a major role in determining structural stability, drainage performance, and long-term durability of the shed. Because of this, building departments often review foundation details carefully before approving a Site Plan for a Shed.

The type of foundation selected usually depends on several factors, including the size of the shed, its intended use (storage, workshop, or utility space), soil conditions, and local building code requirements. In some cases, HOA rules may also influence which foundation types are allowed. A properly detailed Site Plan for a Shed helps ensure that all these conditions are clearly communicated to the reviewer.

Common foundation types include:

• Gravel base or compacted crushed stone:
  This is one of the most common and cost-effective options for small sheds. It provides good drainage, prevents moisture buildup, and allows for easy installation. Many basic storage sheds shown on a Site Plan for a Shed use this foundation type.
• Concrete blocks:
  Lightweight sheds often use concrete blocks as a simple elevated foundation. This option helps keep the shed off the ground, reducing moisture damage and improving airflow. It is frequently accepted in residential Site Plan for a Shed submissions for small to medium structures.
• Concrete slab:
  A concrete slab foundation is typically used for larger or more permanent sheds. It offers a strong, level surface and is ideal for sheds that will support heavy equipment or long-term use. Most building departments require slab details to be clearly shown on the Site Plan for a Shed when applicable.
• Concrete footings:
  For heavy-duty sheds or structures connected to utilities such as electricity or plumbing, concrete footings are often required. These provide maximum structural support and ensure compliance with stricter building codes. A detailed Site Plan for a Shed must include footing locations and dimensions when this option is used.

Including a clear and accurate foundation detail in your Site Plan for a Shed is essential for smooth permit approval. It helps the building department understand the structural approach, ensures compliance with local regulations, and reduces the chances of revision requests or permit delays. A well-documented foundation plan ultimately makes your Site Plan for a Shed more complete, professional, and ready for approval.

Practical Permit Review Checklist

Before submitting your Site Plan for a Shed, review it as if you were the city plan reviewer. The goal is to make the drawing simple, clear, and fully compliant.

Your checklist should include:

• Confirm property boundaries are accurate and clearly marked
• Ensure proposed shed is clearly labeled and separated from existing structures
• Verify all setback distances are visible and easy to read
• Use consistent measurements across all drawings
• Include parcel number, address, and north arrow
• Attach files in the required format from your building department

A well-prepared Site Plan for a Shed reduces correction comments and speeds up approval time.

How to Prepare Your Project Details

A strong submission always starts with complete and accurate information. Before creating your Site Plan for a Shed, gather the following:

• Property address and owner details
• Short description of the shed project
• Photos of the proposed installation area
• Rough measurements of the yard space
• Any instructions from the local permit office
• Existing survey, sketch, or HOA documents (if available)

Even simple reference documents help improve the accuracy of your Site Plan for a Shed and reduce the chance of revisions.

Common Mistakes to Avoid

Many permit delays happen due to small but critical errors in the Site Plan for a Shed. Avoid these common mistakes:

• Using non-scaled drawings or screenshots
• Missing setback information
• Not showing easements or property lines clearly
• Including outdated structures that no longer exist
• Submitting a generic plan instead of a site-specific one
• Mismatch between application details and drawings

A clean, accurate, and properly labeled Site Plan for a Shed is far more likely to be approved without delays or revision requests.
